Fast Iteration → Better Decisions → Fewer Surprises in Production

Prototype
3D Printing

Engineering-focused prototypes for fit, function, and assembly validation. We choose the right process, plan supports/orientation, apply finishing where needed, and verify CTQs—so your iterations converge faster and more predictably.

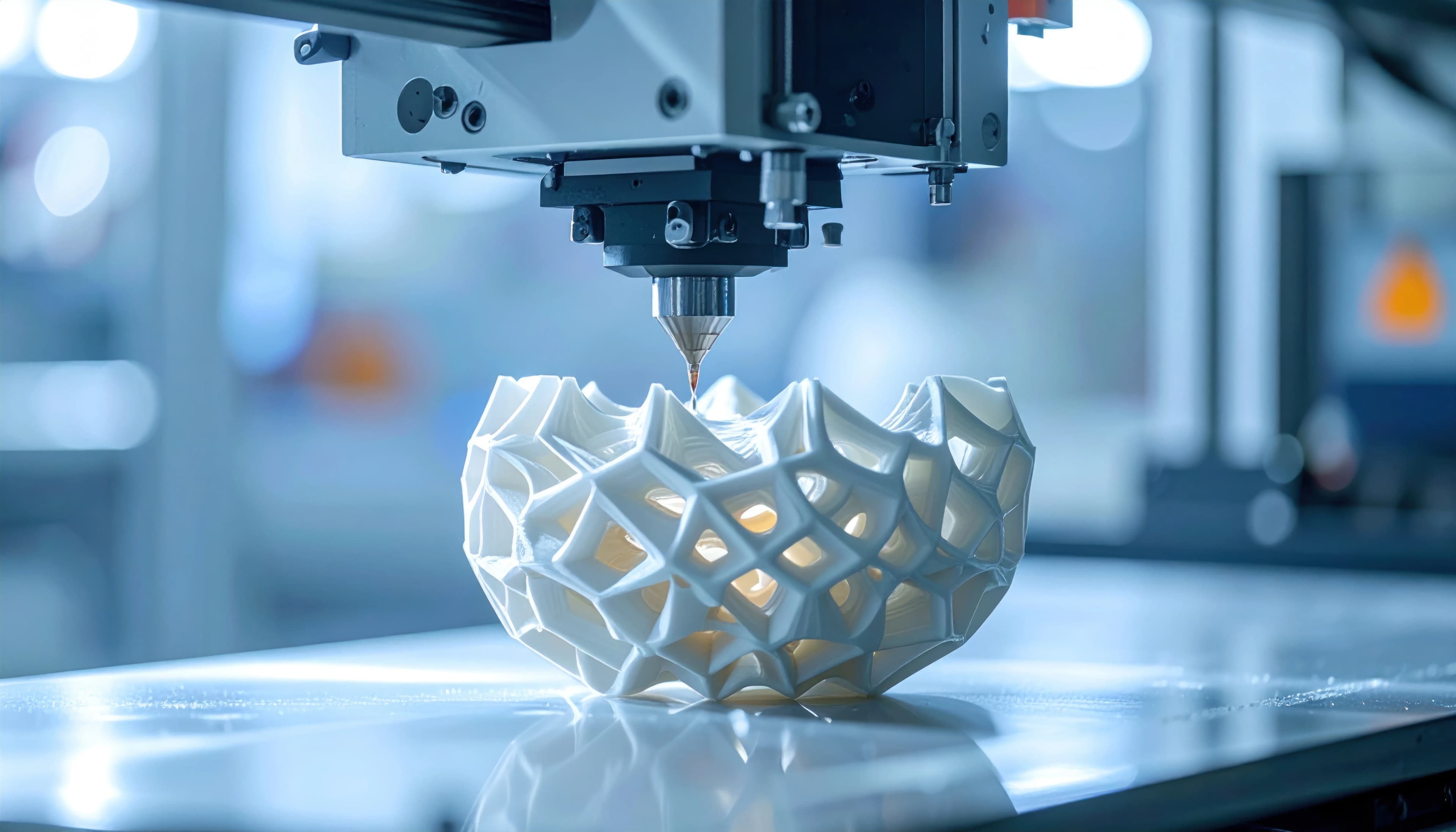

Prototype 3D printed parts for engineering validation, assembly checks, and functional iteration

CTQ Focus

Fit + Interfaces

Typical Lead Time

Days

Build Mode

Prototype → Pilot

Prototype 3D Printing Services

Why Choose PREMSA for Prototype 3D Printing

PREMSA delivers prototype 3D printing to accelerate engineering decisions: verify fit, assembly interfaces, clearances, and functional performance before you commit to tooling or production process windows. We start by defining CTQs (datums, mating faces, holes, snap-fits, sealing lands) and then select the best process for your intent: FDM, SLA/DLP, SLS/MJF, or metal additive when needed.

Prototype success depends on controlling the drivers that create surprises: supports, warping/distortion, shrink behavior, and post-processing effects on clearances. We align orientation/support strategy and finishing to produce parts that test what matters—without misleading results.

From early proof-of-concept models to functional prototypes and pilot sets, we support repeatable programs, revision tracking, and secondary ops (heat-set inserts, drilling/reaming CTQ holes, and light machining of critical datums). You get prototypes that validate reality—not just geometry.

What is Prototype 3D Printing?

Prototype 3D printing produces parts quickly to validate design intent before scaling to production. The right prototype program is not only about printing—it's about choosing the right process and material behavior so tests (fit, strength, flex, thermal exposure, cosmetics) provide reliable signal.

Outcomes depend on process selection, build planning, support strategy, finishing, and CTQ verification. A successful prototype program balances speed with the controls required to learn the right lessons.

Prototype Workflow

A process-selection + DfAM workflow designed to reduce iteration cycles and protect CTQ outcomes.

1. File Intake & Prototype Intent

We review CAD + drawings and confirm your prototype goal: concept, fit-check, functional test, cosmetic review, or pilot set.

2. CTQs + Process Selection

We define CTQs and choose the best process (FDM/SLA/SLS/MJF) based on geometry, tolerance needs, surface requirements, and mechanical intent.

3. DfAM Review (Supports, Warp Risk, Clearances)

We evaluate wall strategy, distortion risk, support accessibility, clearance targets, and tolerance expectations around mating interfaces.

4. Build Planning (Orientation + Supports / Nesting)

We set orientation and supports (or nesting for powder-bed processes) to protect CTQ faces and reduce rework risk.

5. Printing & In-Process Handling

Parts are produced with parameters aligned to the agreed prototype intent and finish class.

6. Post-Processing & Cleanup

Support removal, washing/curing (resins), depowdering (powder-bed), and cosmetic cleanup as specified.

7. Secondary Ops (If Required)

Heat-set inserts, tapping program-based, drilling/reaming CTQ holes, and light machining of datums when needed for assembly realism.

8. Inspection & CTQ Verification

We validate CTQs against agreed datums (fits, holes, mating faces) with documentation aligned to prototype maturity and risk.

Process Selection Guide (What to Use When)

FDM: Fast + Cost-Effective

Best for quick iteration, jigs/fixtures, enclosures, and functional geometry where surface finish and tight tolerances are not the primary driver.

SLA/DLP: High Detail + Smooth Surfaces

Best for cosmetic prototypes, fine features, sharp edges, and smooth surfaces—useful for appearance reviews and precise visual detail.

SLS/MJF: Durable Nylon + No Supports

Best for functional nylon parts, complex geometry, and assemblies where support-free printing and repeatable performance matter.

Metal Additive: Metal Behavior

Used when prototypes must reflect metal stiffness, temperature behavior, or specific use-case constraints—often paired with post-processing/machining on CTQ interfaces.

Finishing Impacts Fit

Post-processing changes effective clearance. We account for finishing in the clearance strategy so assemblies test the right reality.

CTQ Interfaces as Secondary Features

For alignment faces, precision holes, and durable threads, we use inserts and post-ops instead of forcing print-only limits.

Technical Advantages

Faster Iteration Cycles

Rapid prototypes reduce wait time and help teams converge on validated designs sooner.

Better Fit & Assembly Learning

CTQ-first planning ensures prototypes test the interfaces that matter in the final assembly.

Right Process for the Job

We choose process + material behavior aligned to your test goals—so results are meaningful.

Finishing Aligned to Intent

Cleanup and surface programs match cosmetic expectations while protecting functional clearances.

Assembly-Ready Secondary Ops

Inserts, drilling/reaming, and light machining deliver realistic assemblies when required.

Repeatable Programs

Stable planning and documentation support predictable outcomes across revision cycles and pilot sets.

Prototype Benchmarks

Capacity & Envelope

Part Size & Geometry Range

Feasibility depends on process choice, distortion risk, and support accessibility. Large thin shells may require segmentation, ribbing, or process change.

Reviewed by CTQ

Functional Clearances & Assemblies

Assemblies depend on clearance strategy and finishing. CTQ pins/bores or datum faces may require post-ops for reliable fit.

Fit-focused

Throughput & Iteration Speed

We prioritize speed for early iteration and add controls/verification as the prototype matures toward pilot builds.

Concept → Pilot

Not sure which 3D printing process to choose?

Send CAD + requirements and request a process-selection + CTQ review. We’ll align process, material behavior, supports/orientation, finishing, and verification before you commit.

Quality & Process Control

Prototype quality is about making tests meaningful. Defining CTQs, datum strategy, mating faces, functional clearances, surface expectations, and quantity up front enables the correct process selection and stable planning.

CategoryTechnical CapabilityEngineering Notes
CTQs, Datums & Metrology StrategyPrototype programs are structured around CTQs that drive assembly: datum faces, hole location/size, sealing/mating faces, and functional fits. Capability depends on process, geometry, and whether CTQ interfaces are post-finished.

If a face is a datum in assembly, protect it via orientation and consider post-ops when alignment is critical.

Accuracy Drivers: Warp, Supports, Shrink & OrientationPrinted parts vary based on process physics and geometry. Support strategy, thermal behavior, and post-processing all influence final dimensions.

For tight fits, design functional clearances and use secondary ops on CTQ interfaces rather than pushing print-only limits.

Surface Finish & Cosmetics: As-Printed → Post-ProcessSurface outcomes depend on process and finish class. SLA/DLP delivers smooth surfaces; powder-bed nylon is matte; FDM shows layer texture. Post-processing refines cosmetics but may change fit.

Specify finish class and cosmetic expectations; for assemblies, account for finishing in clearance strategy.

Repeatability: Programs for Iteration Cycles & Small RunsRepeatability improves when process/material/parameters and finishing steps are locked. This matters when you need multiple revisions or pilot sets that must assemble consistently.

Lock key parameters (process, material, orientation/supports, finishing) once the design converges.

Baseline Standard: Commercial prototype printing practices unless CTQ, finish class, or documentation is specified

Materials

Material selection drives strength, thermal resistance, chemical compatibility, surface quality, dimensional stability, and long-term performance. Share your environment, loads, tolerances, and critical features so we can recommend the right additive process and material family.

FDM Thermoplastics

FDM is widely used for engineering prototypes, fixtures, jigs, manufacturing aids, and low-volume functional parts. Mechanical performance depends on material family, wall design, infill strategy, and build orientation.

SLA / DLP Resins

Photopolymer resins provide excellent surface quality and high feature resolution. Final properties depend on resin chemistry and post-curing.

SLS / MJF Polymers

Powder-bed polymer processes support complex geometry without support structures and are well suited for functional end-use parts.

Metal Additive Materials (DMLS / SLM)

Metal additive manufacturing supports complex geometries and internal channels. Secondary heat treatment and finish machining are often required.

Post-Processing & Secondary Operations

Additive parts require controlled post-processing to achieve cosmetic grade, interface accuracy, and mechanical performance. Workflows are selected based on geometry, material, and end-use requirements.

Secondary Operations & Surface Options

Prototype DfAM Guidelines (DFAM)

Prototype success is won on choosing the right process and protecting CTQ interfaces. These DfAM rules reduce rework, improve fit realism, and shorten iteration cycles.

Design FeatureRecommendation
Wall Thickness, Supports & Failure PreventionAvoid extreme thin features without support strategy. Keep walls consistent where possible and add fillets/ribs to reduce distortion and breakage.
Clearances, Fits & AssembliesDesign functional gaps intentionally and keep them consistent. Account for finishing which can change effective clearance on tight fits.
Holes, Threads & InsertsUse inserts for durable threads under repeated torque cycles. Plan drilling/reaming for CTQ holes and support bosses with fillets to reduce cracking.
Orientation, Datum Surfaces & Feature ProtectionOrient to protect datum faces and mating surfaces from support scars and distortion. If a face is a datum in assembly, treat it as protected.
Surface Finish, Text & DetailMatch process to detail requirements. SLA/DLP supports crisp details; powder-bed nylon is matte; FDM shows layers. Use larger emboss/deboss text and protect edges with chamfers/fillets.
Drawing & Specification Checklist (Prototype 3D Printing)Define prototype intent, CTQs, datums, mating faces + functional clearances, finish class, preferred material family, target quantity, environment exposure, and any needs for inserts, machining, inspection evidence, or traceability.

Applications & Industries

Prototype 3D Printing Applications

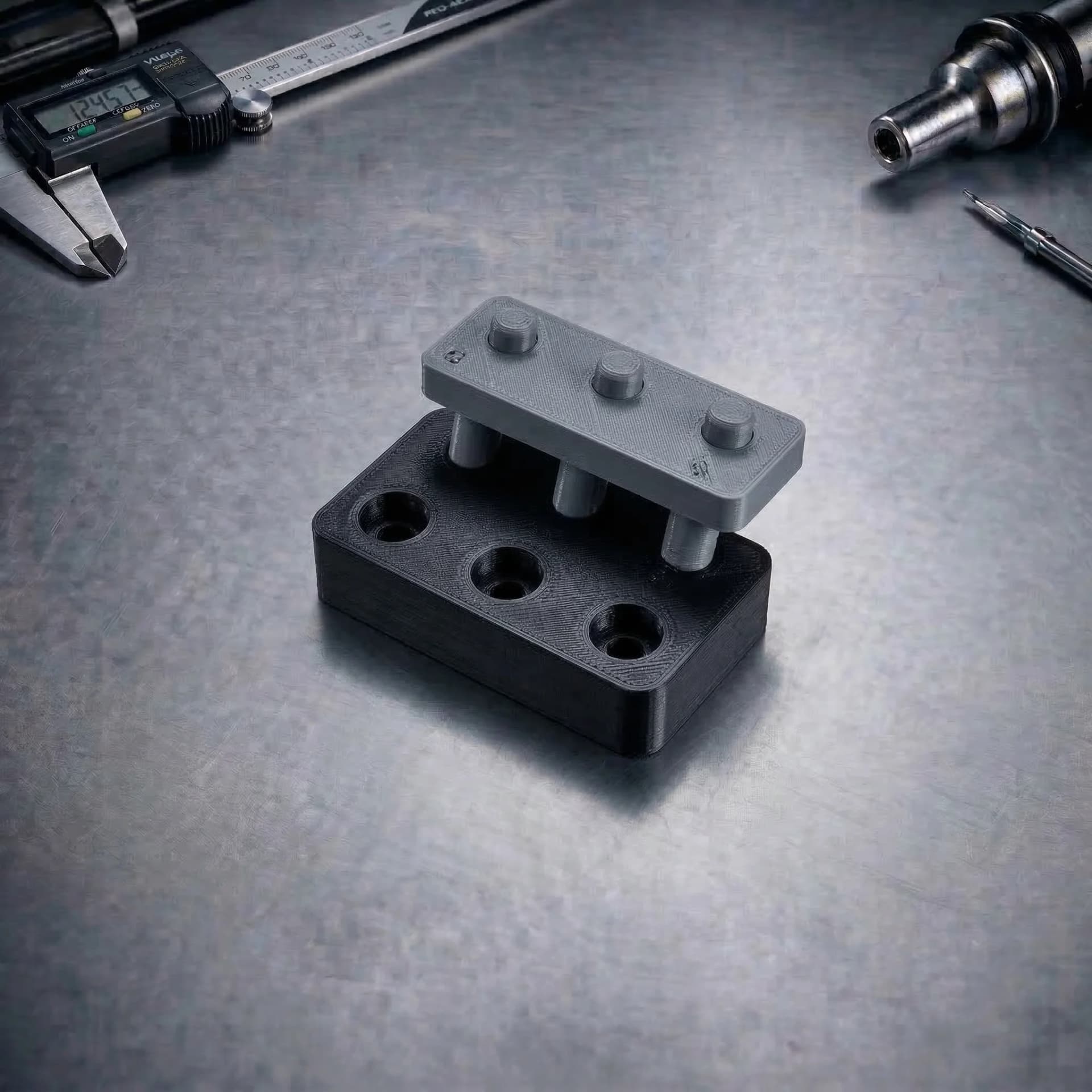

Fit & Assembly Prototypes

Fit & Assembly Prototypes

Enclosures, brackets, mounts, and interfaces to validate clearances, alignment, and fastener strategy early.

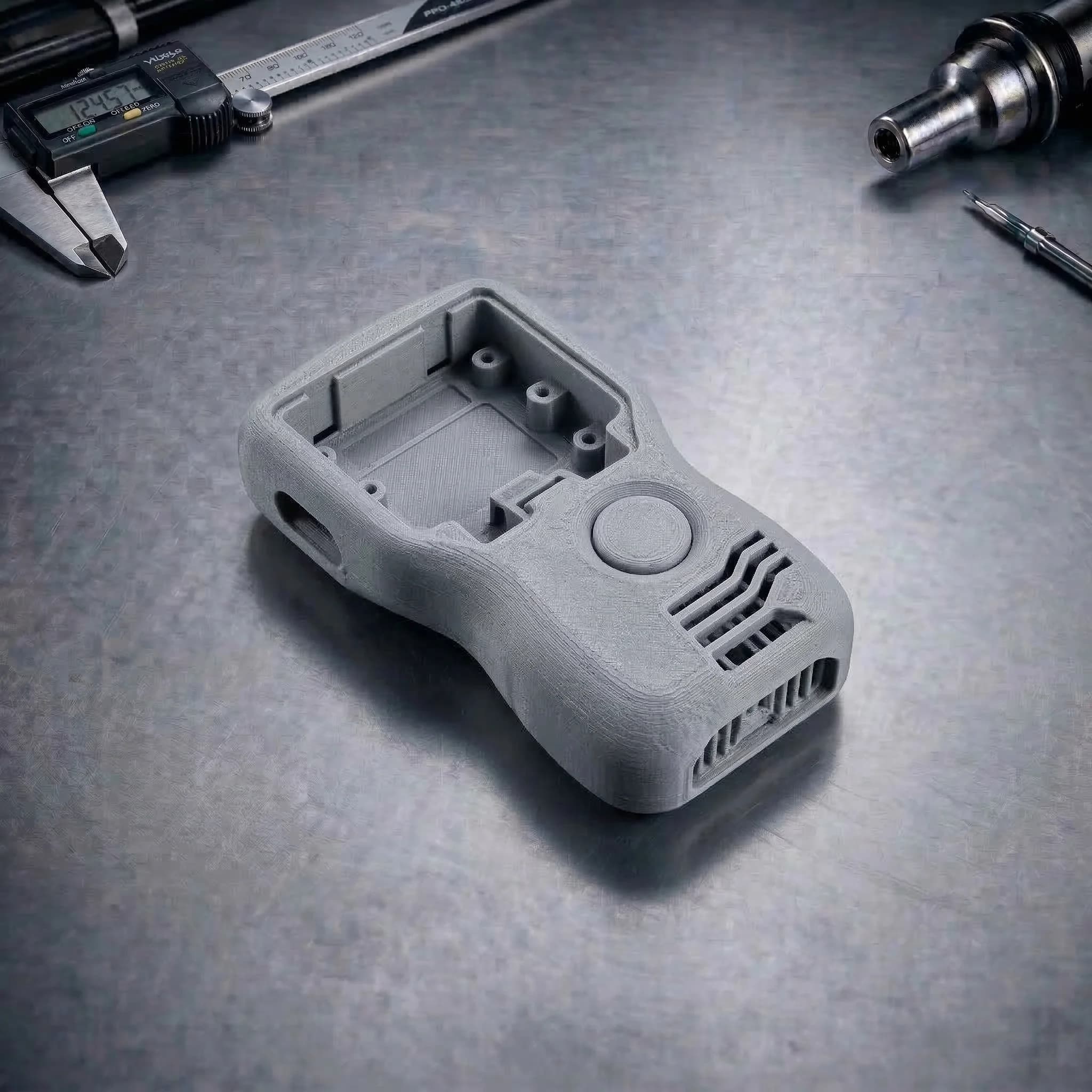

Functional Prototypes

Functional Prototypes

Durable parts for mechanical checks, handling, and pilot testing—choose material behavior to match the test.

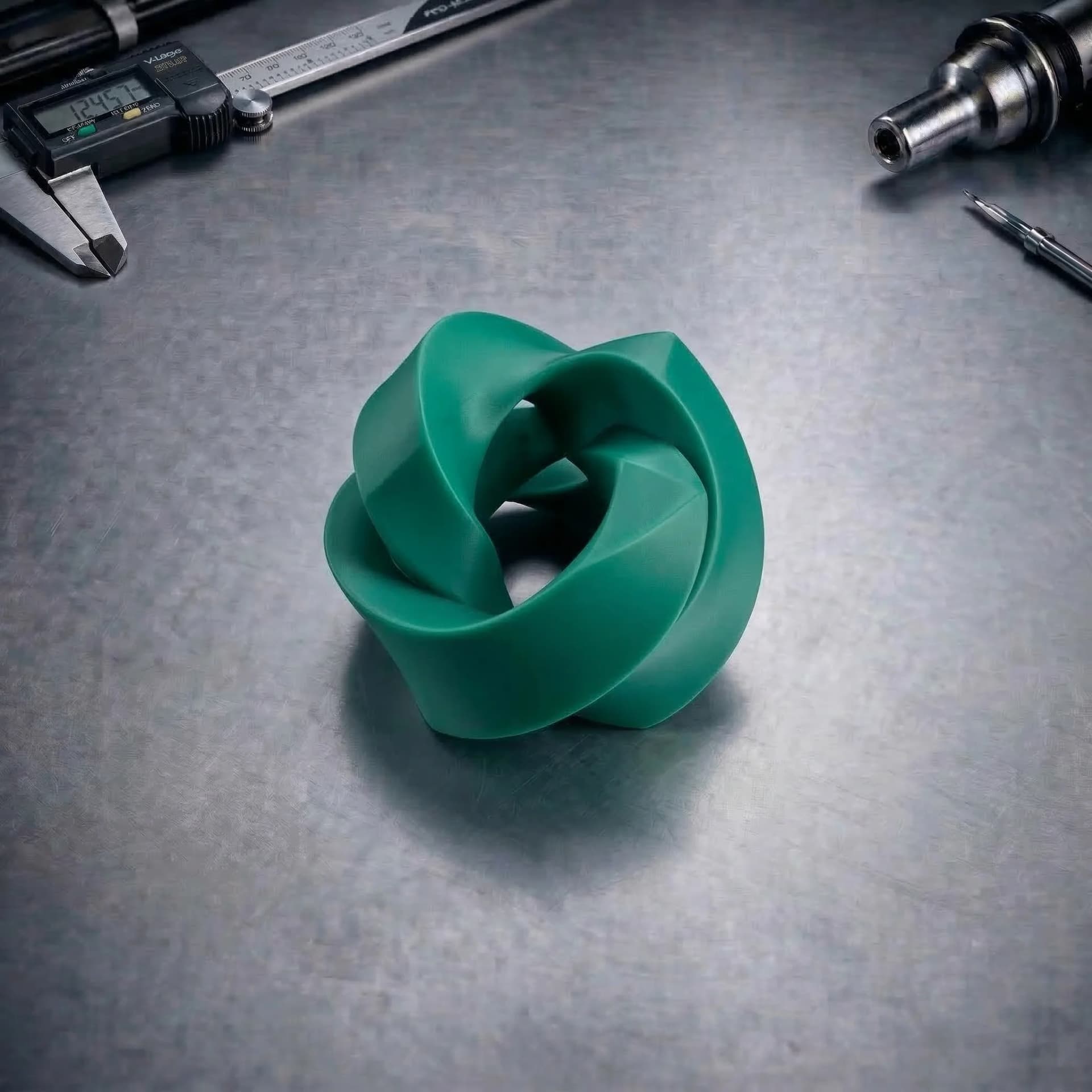

Cosmetic / Presentation Models

Cosmetic / Presentation Models

High-detail parts for stakeholder reviews, ergonomic checks, and product visuals—often SLA/DLP with surface prep.

FAQs & Knowledge Base

Prototype 3D Printing FAQs

PREMSA Industries

Ready to prototype faster and de-risk your design?

Upload CAD + requirements for a process-selection + DfAM review. We’ll align materials, build planning, finishing, and CTQ verification to deliver prototypes that validate fit and function—fast.

Engineering Review: Under 2 Hours
